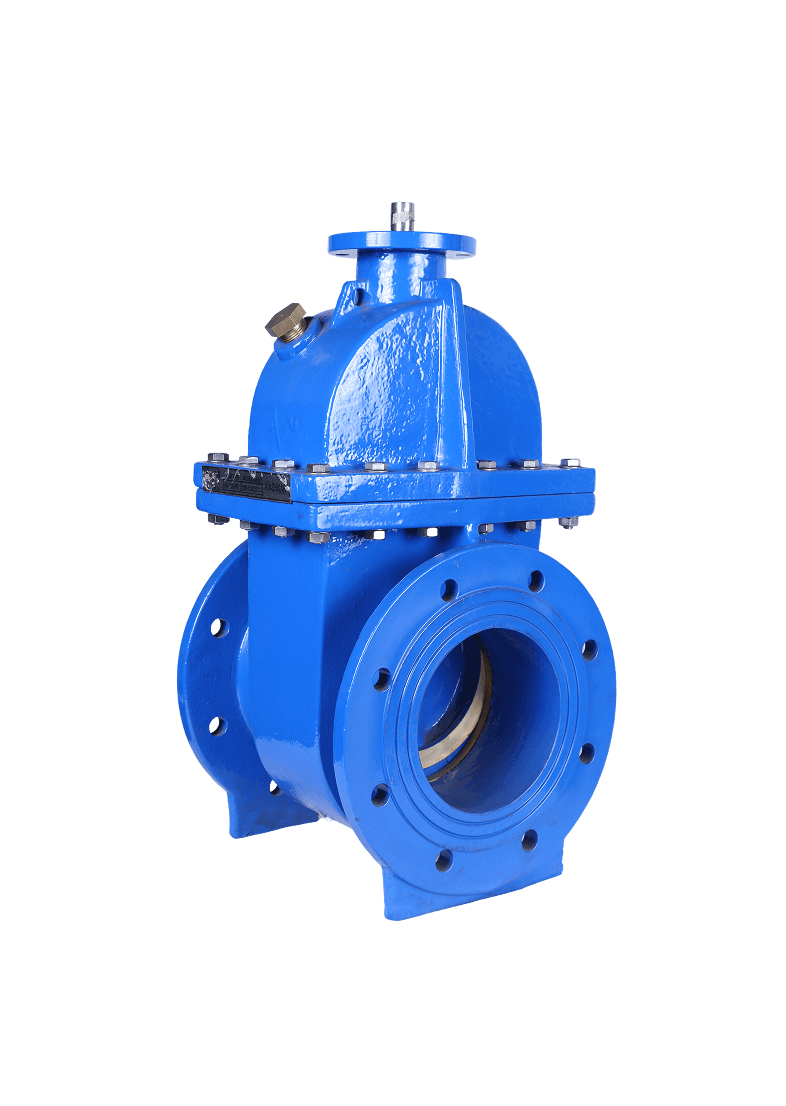

Metal Seated - Sluice Valve

Metal Seated - Sluice Valve

Metal Seated - Sluice Valve

Actuation

Captop / Hand Wheel / Mounted Spur or Bevel Gear / Electric, Pneumatic and Hydraulic Actuator

Working Temperature

20°C up to +70°C for liquids

Specifications

Design and Manufacturing as per IS 14846 / BS EN 5163 (EN 1074) / DIN 3352


End Connection Flanged as per IS 1538 / BS EN 1092

Size Range & Pressure

50 mm to 1200 mm

PN 10 and PN 16

Advantages

Full bore design hence low head loss.

Full bore design hence low head loss.

Full bore design hence low head loss.

Lined channel guides provided in body and wedge for smooth and trouble free operation in high turbulence zone.

Lined channel guides provided in body and wedge for smooth and trouble free operation in high turbulence zone.

Lined channel guides provided in body and wedge for smooth and trouble free operation in high turbulence zone.

Gland rope arrangement replaced by toroidal and rotary seal.

Gland rope arrangement replaced by toroidal and rotary seal.

Gland rope arrangement replaced by toroidal and rotary seal.

Seating faces consist of copper alloy or stainless steel rings of heavy angle section on each face of the gate, mating with corresponding rings in the body. The rings are machined and force fit in machined under weight recesses with special sealant.

Seating faces consist of copper alloy or stainless steel rings of heavy angle section on each face of the gate, mating with corresponding rings in the body. The rings are machined and force fit in machined under weight recesses with special sealant.

Seating faces consist of copper alloy or stainless steel rings of heavy angle section on each face of the gate, mating with corresponding rings in the body. The rings are machined and force fit in machined under weight recesses with special sealant.

Seating faces consist of copper alloy or stainless steel rings of heavy angle section on each face of the gate, mating with corresponding rings in the body. The rings are machined and force fit in machined under weight recesses with special sealant.

Seating faces consist of copper alloy or stainless steel rings of heavy angle section on each face of the gate, mating with corresponding rings in the body. The rings are machined and force fit in machined under weight recesses with special sealant.

Seating faces consist of copper alloy or stainless steel rings of heavy angle section on each face of the gate, mating with corresponding rings in the body. The rings are machined and force fit in machined under weight recesses with special sealant.

Sluice valves 350 mm and above are operated through enclosed / seated gearbox to ensure valve is operated below the designated 80 Nm torque.

Sluice valves 350 mm and above are operated through enclosed / seated gearbox to ensure valve is operated below the designated 80 Nm torque.

Sluice valves 350 mm and above are operated through enclosed / seated gearbox to ensure valve is operated below the designated 80 Nm torque.
